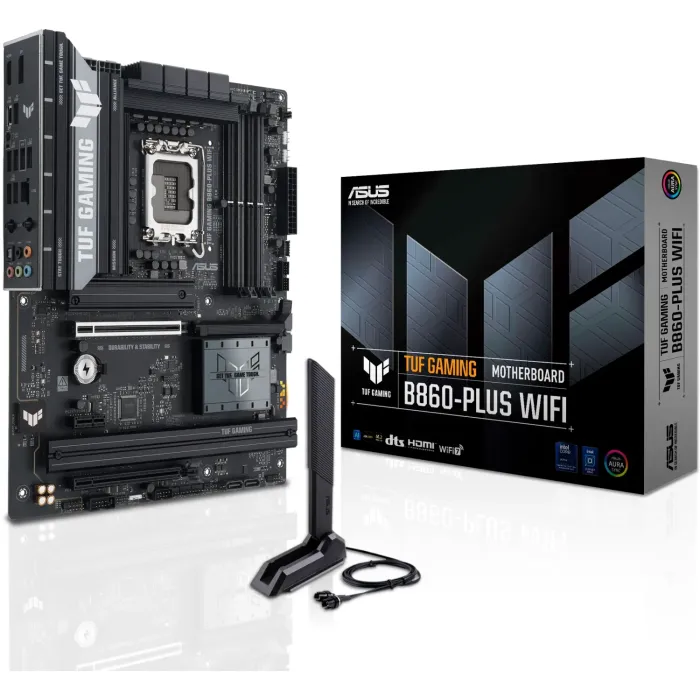

ASUS TUF Gaming B860-Plus WIFI
244,00 €
Auf Lager
SKU
ES-PCS1133997
ASUS TUF Gaming B860-Plus WIFI
| Allgemein | |
|---|---|
| Produkttyp | Motherboard - ATX |
| Chipsatz | Intel B860 |
| Prozessorsockel | LGA1851-Sockel |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | (unterstützt Intel Core Ultra Prozessoren (Serie 2)) |
| Unterstützter RAM | |
| Max. Größe | 256 GB |
| Technologie | DDR5 |
| Bustakt | 4333 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC, on-die ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Intel Extreme Memory Profiles (XMP), Zwei-Kanal-Speicherarchitektur |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Kompatibilität | High-Definition-Audio |
| LAN | |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU ¦ 4 x DIMM 288-polig ¦ PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4-Modus) ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M) ¦ 1 x M.2 socket (2280 M.2-Slot) ¦ 1 x M.2 socket (2280/22.110 M.2 Key M Slot) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -anschlussstellen: 2 x M.2 ¦ PCIe 5.0 -anschlussstellen: 1 x M.2 |
| Schnittstellen | 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2/DisplayPort ¦ 2 x Antenne ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x Mikrofon - Mini-Klinkenstecker ¦ 1 x Audio Line-In - Mini-Klinkenstecker ¦ 1 x Audio Line-Out - Mini-Klinkenstecker ¦ 1 x Audio Line-Out (Mitte/Subwoofer) - Mini-Klinkenstecker ¦ 1 x Audio Line-Out (hinten) - Mini-Klinkenstecker ¦ 1 x SPDIF-Ausgang |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 2 - Stiftleiste ¦ 2 x USB 3.2 Gen 1 - Stiftleiste ¦ 2 x USB 2.0 - Stiftleiste ¦ 1 x Seriell - Stiftleiste ¦ 1 x Audio - Stiftleiste ¦ 1 x Thunderbolt 4 - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS,asus EZ Flash,asus UEFI BIOS EZ Mode |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | Preboot eXecution Environment (PXE),asus TUF Protection,asus DIGI+ VRM, TUF LANGuard, Überspannungsschutz,asus SafeSlot Core,asus Stainless Steel Back I/O,asus Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, M.2 Kühlkörper, VRM Kühlkörperdesign,asus EZ DIY,asus ProCool, SafeDIMM, 12+1+2+1 Phasen Stromdesign, 80 A Leistungsstufe, Dr.MOS MOSFET,asus Enhanced Memory Profile (AEMP) III, 6 Layer PCB |
| Call for Price | Nein |
|---|
