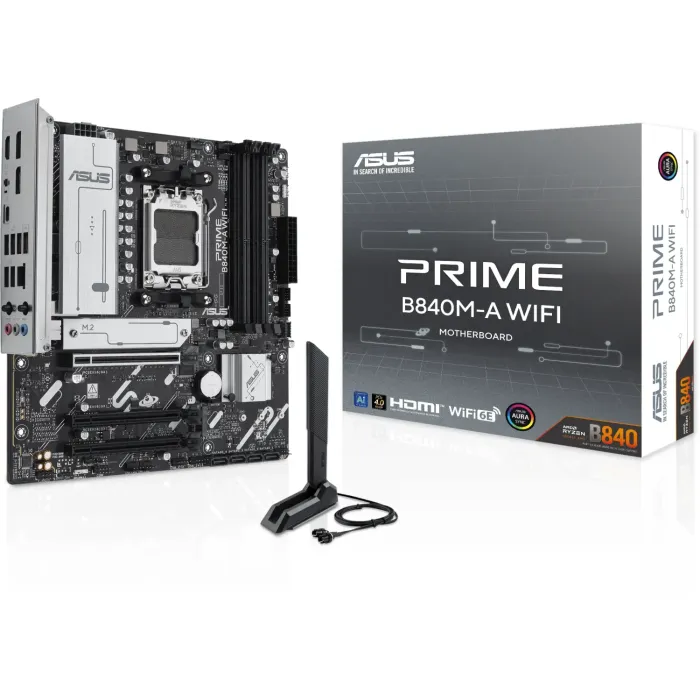

ASUS Prime B840M-A WIFI
143,00 €
Auf Lager
SKU
ES-PCS1133874
ASUS Prime B840M-A WIFI
| Allgemein | |
|---|---|
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | AMD B840 |
| Prozessorsockel | Socket AM5 |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000/8000/9000 Serie) |
| Unterstützter RAM | |
| Max. Größe | 192 GB |
| Technologie | DDR5 |
| Bustakt | 3800 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC, on-die ECC, ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | AMD EXPO Technology, Zwei-Kanal-Speicherarchitektur |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Kompatibilität | High-Definition-Audio |
| LAN | |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU ¦ 4 x DIMM 288-polig ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M) ¦ 2 x M.2 socket (2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -anschlussstellen: 1 x M.2 |
| Schnittstellen | 1 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2-Tastatur/-maus ¦ 1 x Mikrofon - Mini-Klinkenstecker ¦ 1 x Audio Line-In - Mini-Klinkenstecker ¦ 1 x Audio Line-Out - Mini-Klinkenstecker ¦ 1 x USB-C 3.1 Gen 1 |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 1 - Stiftleiste ¦ 2 x USB 3.2 Gen 1 - Stiftleiste ¦ 4 x USB 2.0 - Stiftleiste ¦ 1 x Seriell - Stiftleiste ¦ 1 x Audio - Stiftleiste ¦ 1 x SPDIF-Ausgang - Stiftleiste ¦ 1 x Lautsprecher - Stiftleiste ¦ 1 x SPI - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS,asus EZ Flash 3,asus UEFI BIOS EZ Mode |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | Preboot eXecution Environment (PXE),asus EZ DIY,asus DIGI+ VRM, CrashFree BIOS 3,asus OptiMem II,asus 5X Protection III, LANGuard, Überspannungsschutz,asus SafeSlot Core,asus Stainless Steel Back I/O,asus Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM Kühlkörperdesign, BIOS FlashBack-Taste, BIOS FlashBack LED,asus Aura Sync, Lighting Control,asus Control Center Express (ACC Express), 6 Layer PCB,asus Enhanced Memory Profile (AEMP) |
| Call for Price | Nein |
|---|
